ALPHA™ HARD TOP SIDE OPEN TENT, BLACK, 2-3 PERSON

The TUFF STUFF® Alpha is a premium hybrid side-opening rooftop tent designed for rapid setup — ready to camp in under two minutes. Its sleek, aerodynamic hard shell reduces wind resistance on the road, while the tall profile lets you store your bedding inside even when closed. Built for convenience and comfort, the Alpha makes overlanding faster, easier, and more enjoyable.

• • Mounting hardware & brackets for installation (fits up to 3.25" cross bars)
    • Mattress
    • Shoe bag, 1 qty
    • Storage bag, 1 qty
    • Window rods, 6 qty
    • Window awnings (removable)
    • Rainfly
    • Moon roof
    • Telescoping ladder with angled steps (will not bite into your arches!)
    • LED Lights for interior & exterior (requires power from a USB power pack, not included)
    • Patch kit & glue to perform repairs
    • Not included, but available, is the Alpha™ Annex Room.


Sleeping Capacity

• 2–3 people

Dimensions & Weight

• Open: 75" L × 87" W × 52" H
• Closed: 75" L × 55" W × 15" H
• Mattress: 71" × 87" × 2.75"
• Weight: 176 lbs
• Weight Capacity: 1,100 lbs

Construction & Materials

• Tent Fabric: 280G poly/cotton ripstop
• Rainfly: 210D polyester Oxford, PU-coated (5000MM waterproof)
• Floor: Heavy-duty aluminum honeycomb
• Shell: ABS hard shell

Hardware & Features

• YKK zippers with custom paracord pulls (reduces wind noise)
• LED lighting – amber & white, inside and outside
• 3 mesh-screened windows with window rods
• Skylight with mesh and solid panel
• 2 removable (zip-off) side window rain awnings (included)
• Installation brackets fit crossbars up to 3.25" wide
• Mounting rails: 32.5" apart
• Steel cable locks with 2 pairs of keys
• Telescoping 7.5' ladder with angled steps (included)
• Stainless steel mounting hardware (included)

Optional Add-On

• Annex room (sold separately)

Mounting Tent

• Mounting your tent requires a minimum of 2 people for lifting.

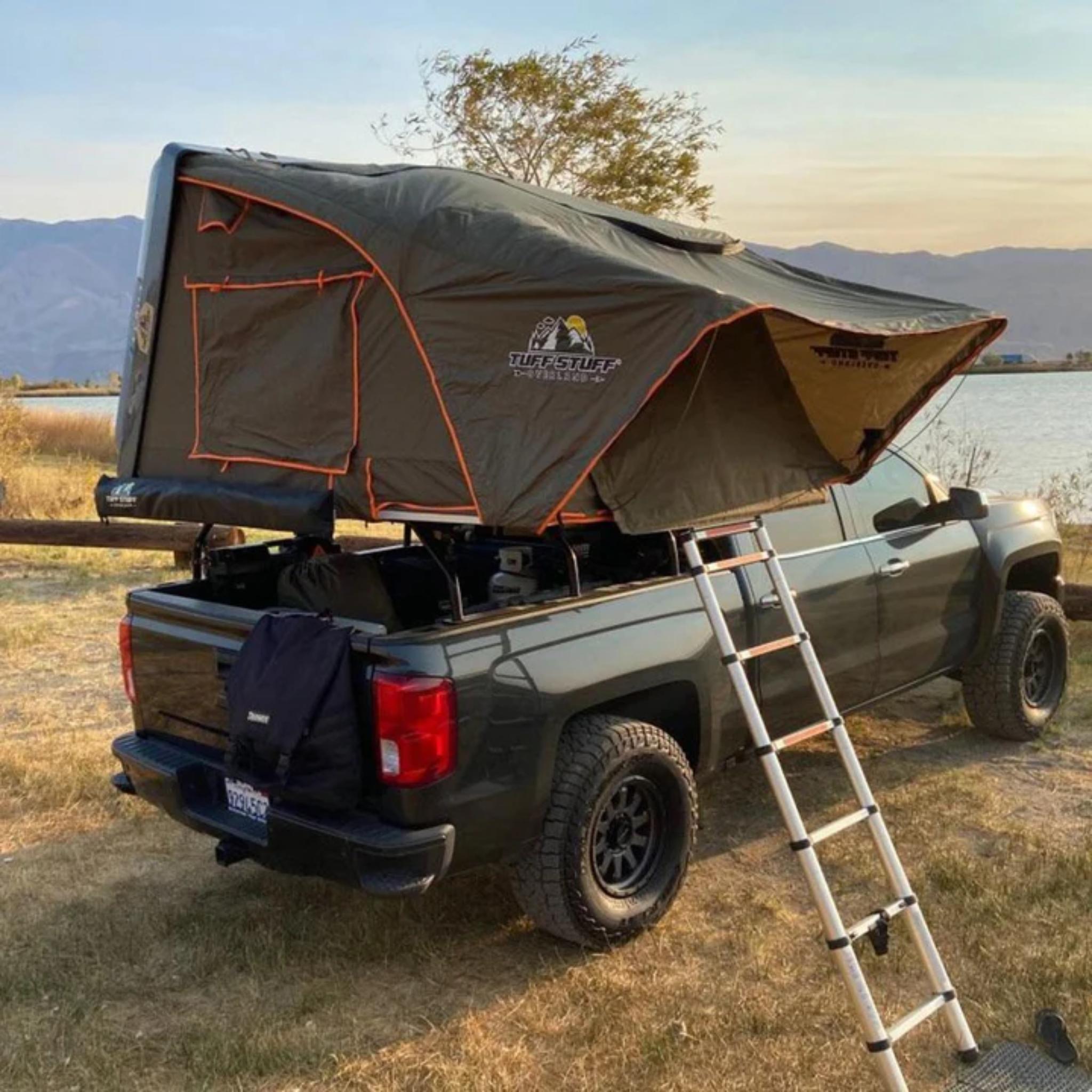

• Your tent will ONLY OPEN ON THE PASSENGER SIDE. Position the tent on top of the vehicle's roof rack, bed rack, or trailer and center to your liking.
• Using the supplied hardware and mounting plates, slide the hardware into the channel so there are 2 bolts per corner (one in front and one behind the vehicle's crossbars).
• Run the bolts through the mounting brackets holes, thread nuts onto each bolt.
• Confirm you are happy with the position of the tent, vehicle balance, and appearance then tighten all nuts to the brackets until the tent cannot move.
• Undo the buckles on the side of the tent, push up on the handle to actuate the hydraulic rams to open the tent hard shell, Pull out on the telescoping ladder until it is fully extended- pull down on ladder until the folding side of the tent has opened and extended fully.
• Reposition the ladder to your desired height/angle.
• Install the supplied tension rods on the overhang of the tent & windows, open the door, and enjoy!

Limit Sun Exposure

• Prolonged UV exposure can break down the clear coat.
• Hot sunlight can open small pores in the coating, letting dirt and debris in.
• Park in a garage or shaded area whenever possible.

Remove Bird & Bug Droppings Promptly

• Droppings are highly acidic and can eat through the clear coat.
• Rinse them off immediately with water.

Guard Against Salt

• Salt (from coastal air or winter roads) can corrode the clear coat.
• Rinse or wash your tent regularly, just as you would a surfboard.

Avoid Tree Sap

• Sap can soak into the clear coat or attract dirt that grinds into it.
• Avoid parking under trees when possible.

Wash & Wax Regularly

• Hand wash to remove dust and dirt that wear down the coating.
• Use automotive clear-coat protection products to seal and protect the surface.
• Apply following manufacturer instructions—usually as often as you wash your vehicle.


PLEASE REFER TO THE USER MANUAL FOR FULL INSTRUCTIONS
